Company Summary

The Objectives....

To be a leader of Unmanned Aerial Vehicle system manufacturing and technology both in military and civilians sector for Indonesia, Asia Pacific and Middle East market.


About Us

Our focus in design, manufacture and marketing of Unmanned Aerial System, include Avionics System, Ground Control System and Payload System.








Experiences in Research & Development UAV

Joint Development with Direktorat Teknologi Industri – KEMHAN, 2002-2004. R & D prototype UAV Sky Spy-5.

Joint Development with The Agency for the Assessment and Application of Technology (BPPT), 2006-2009.
R & D Medium Range UAV Wulung, Pelatuk, Gagak, and Short Range UAV Sriti.

R & D Target Drone for DISLITBANG TNI AU, 2011.

R & D UAV Back Pack and Short Range, 2012.

Product

THE BEST RESULTS ARE OBTAINED BY TASKING THE RIGHT PEOPLE TO THE RIGHT PROJECT

  • img01
  • img02
  • img04
  • img01
  • img01

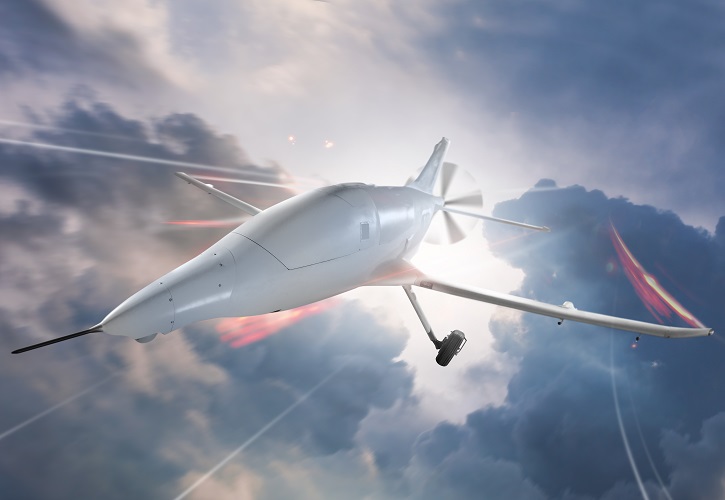

IPCD M.A.L.E UAV


IPCD MALE is a UAV has a high endurance and massive payload. It can fly up to 22 Hours and take up to 250 kg payload with.

Specification

Autonomy    22-24 hrs
Max Cruise Speed    158 kts / 293 km/hr
Operational Speed    from 80 to 150kts 10% composite airframe automatic take - off landing on non prepared air strip
Cruising flight consumption    10L/hr < 250kg payload
Back parachute * optional
Low IR - EM signature
Day and Night video camera










FL-18 SKYBORG


As a VTOL unmanned copter, Skyborg is a very steady UAV while it’s flying and hovering. It’s because of the double counter rotating design. It can fly for 4 hours with 75 km/ hrs speed.

Specification

Engine    Variable Pitch Contra-Rotative(2x3 blades)
Rotor D    2,42 m
Rotor Speed    750 rpm
Engine    11 kW Turbine
Fuel    JET A1 +5% Turbin Oil
Consumption    approx. 10 Liter/hour
Dimension    175cm x 71cm x 89cm(l/w/h)
Dry Weight    22kg
Max payload    30kg
MTOW    55kg
Fuel Capacity    2 x 15 liter (+optional additional tank)
Fligth Time    Up to 4 Hours







Target Drones


Specially developed for air defense task force training. This delta wing UAV has speed up to 200 km/hrs equipped with flare system and launcher system. Besides using the rotor / blade engine, can be upgrade to a jet engine

Specification

MTOW    40kg
Wing Span    2,5 M
Endurance    Up to 2 Hours
Radius    Up to 5 Km
Take Off    Launcher System







BACKPACK


Can be deployed within 20 minutes, our Tactical UAV adopts modular system and easy mobilize. It has a range 5 km and very low noise, suitable for any recconnaissance mission

Specification

MTOW    2kg
Wing Span    1,7 M
Endurance    Up to 45 minutes
Radius    Up to 5 Km
Take Off    Hand Launched







Surveyor UAV


Still using modular system, this surveyor UAV has more advance capabilities than Tactical UAV. Easy mobilize and using small launcher system to do surveillance mission.



Specification

MTOW    6kg
Wing Span    2,44 M
Endurance    Up to 1,5 hours
Radius    Up to 30 Km
Take Off    Launcher System










Capabilities

UAV System & Design
Air Vehicle Aerodynamics Design & Analysis
Flight Control & Navigation System Design
UAV System Modeling & Simulation
Composite Structure Design & Analysis
Composite Structure Fabrication
UAV System Integration
UAV Flight Test & Training

  • logo
  • logo
  • logo
  • logo
  • logo
  • logo
